Loadcells

Submit Scale Quote Request

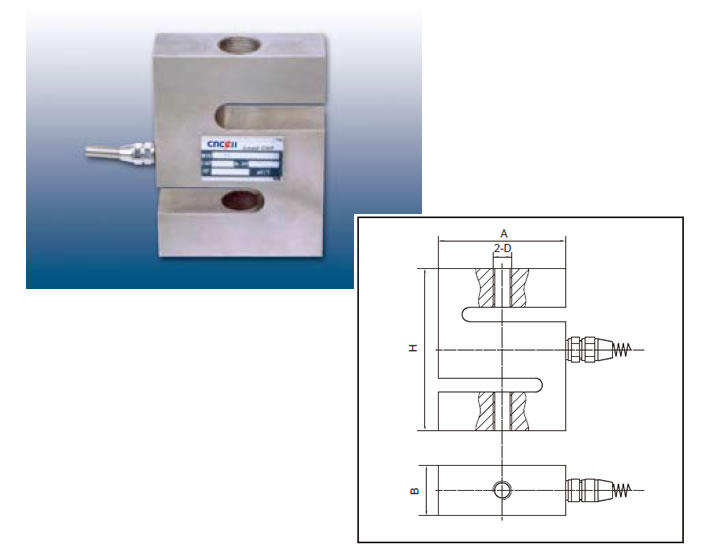

  ST-2601 - PACIFIC PA6110 s-type
Specifications:

● Capacity: 50kg; 150kg; 300kg & 500kg
● Alloy Steel / Stainless Steel
● 4 Color shield cable 20FT (6m)

WIRING:
RED +INPUT GREEN +OUTPUT
BLACK -INPUT WHITE -OUTPUT

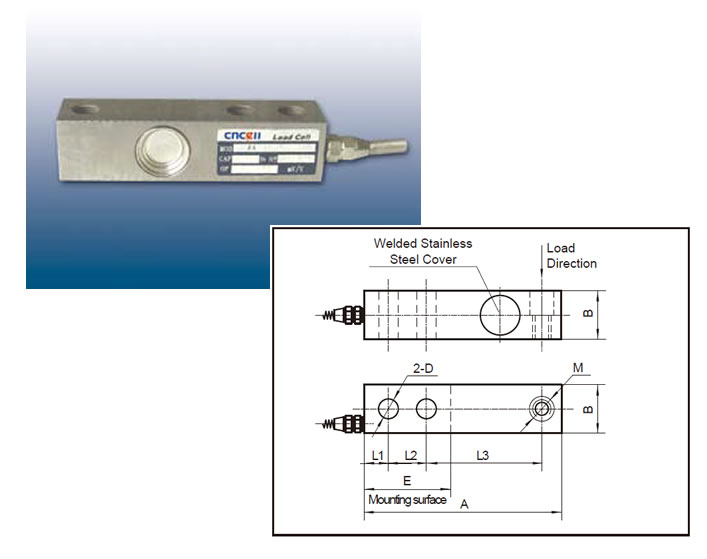

  ST-2602 - PACIFIC PA6240W Stainless Steel shear beam
Specifications:

● Capacity: 1000kg & 2000kg
● Alloy tool steel(PA6140W) Stainless steel(PA6240W)
● 4 COLOR SHIELD CABLE 20FT (6m)


WIRING:
RED +INPUT GREEN +OUTPUT
BLACK -INPUT WHITE OUTPUT

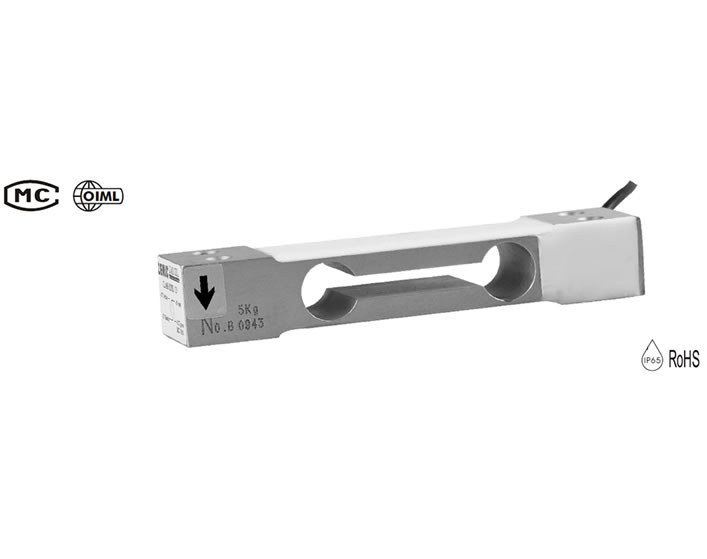

  ST-2603 - ZEMIC L6D centre mount
Specifications:
● Capacity: 10 - 35 kg
● High accuracy
● Alumium construction with parallel beam
● Max. platform size: 250x350mm
●OIML approved
● Available for pricing scale, counting scale, balance and other electronic weighing devices.

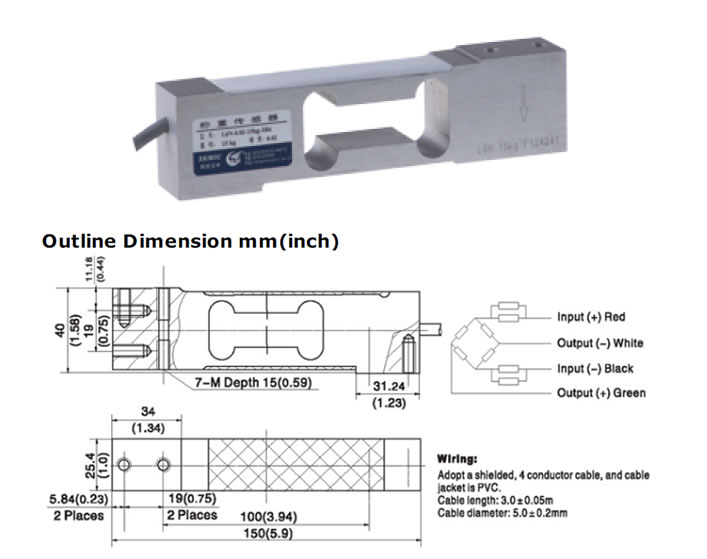

  ST-2604 - ZEMIC L6N centre mount
Specifications:

● Capacity: 50kg & 100kg
● High accuracy
● Alumium construction with parallel beam
● Max. platform size: 400x400mm
● OIML approved
● Suitable for electronic balance and other electronic weighing devices.

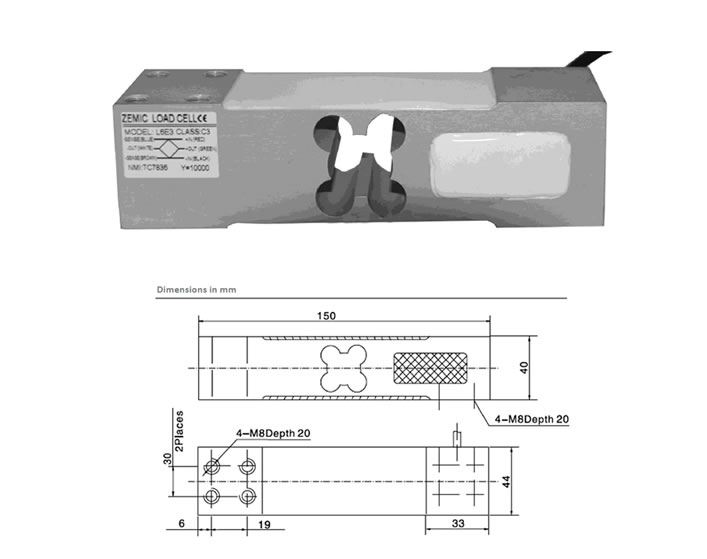

  ST-2605 - ZEMIC L6E centre mount
Specifications:

● Capacity: 300kg & 500kg
● High accuracy
● Alumium construction with parallel beam
● Max. platform size: 400x400mm
● OIML approved
● Suitable for electronic balance and other electronic weighing devices.

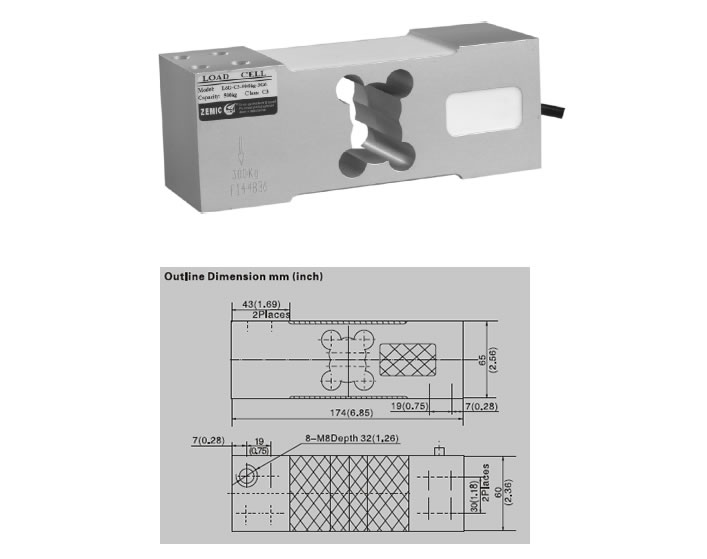

  ST-2606 - ZEMIC L6G centre mount
Specifications:
● Capacity: 500kg & 600kg
● High accuracy
● Alumium construction with parallel beam
● Max. platform size: 600x600mm
● OIML approved
● Suitable for pricing scale, counting scale, balance and other electronic weighing devices

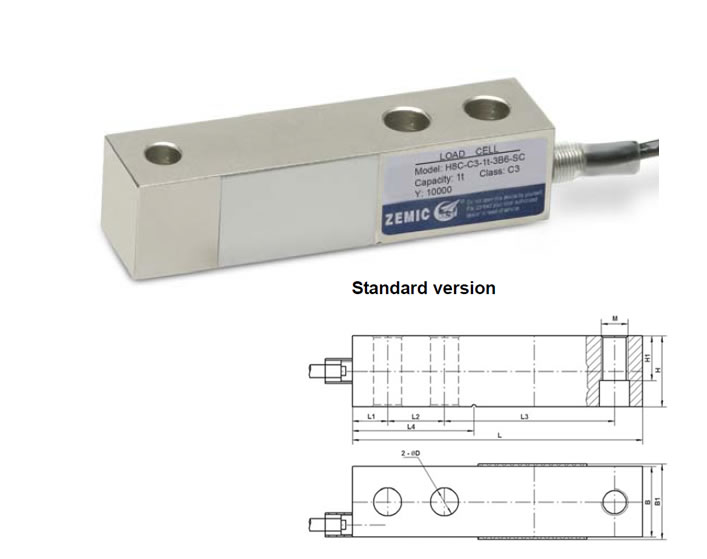

  ST-2607 - ZEMIC H8C shear beam
Specifications:

● Capacity: 500kg; 1 ton; 2 ton; 5 ton; & 10 ton
● High accuracy
● Alumium construction with parallel beam
● Max. platform size: 600x600mm
● OIML approved
● Suitable for pricing scale, counting scale, balance and other electronic weighing devices.

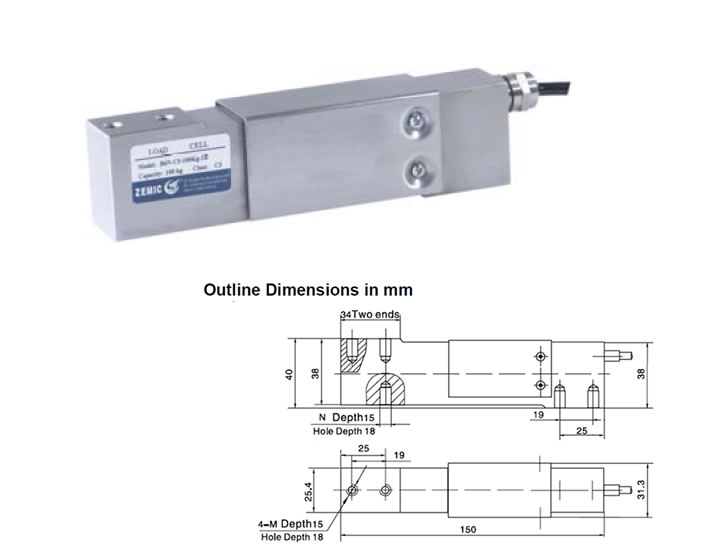

  ST-2608 - ZEMIC B6N Stainless Steel centre mount
Specifications:

● Capacity: 30kg; 50kg & 100kg
● Bending beam construction
● Stainless steel IP67 single point load cell
● Max. platform size: 400x400mm
● OIML approved
● Suitable for weighing equipment like platform and belt scales, etc.

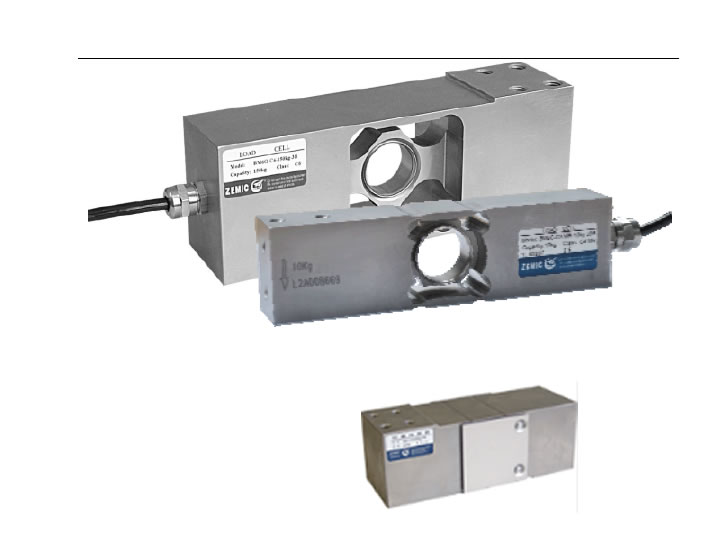

  ST-2609 - ZEMIC BM6G Stainless Steel centre mount
Specifications:


● Capacity: 300kg
● Bending beam construction
● Stainless steel IP69K single point load cell
● Recommended platform size: 800 x 800 mm (100 - 500 kg)
● Recommended platform size: 400 x 400 mm (10 - 50 kg)
● OIML approved
● Suitable for platform, belt scales and other weighing devices

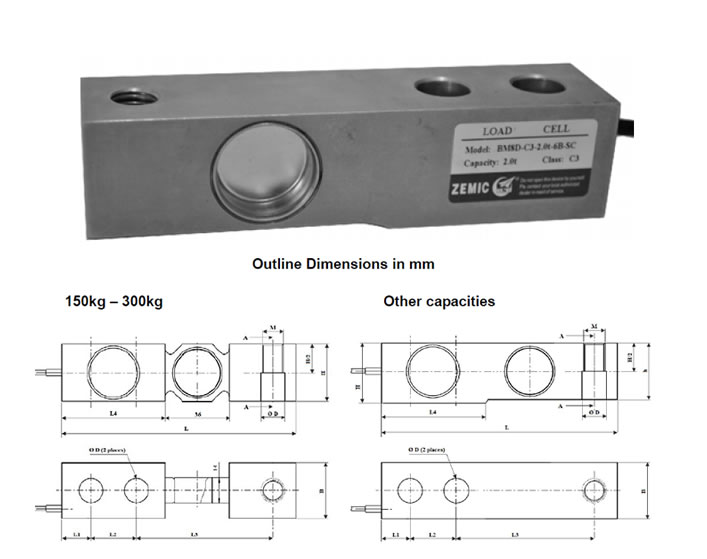

  ST-2610 - ZEMIC BM8D Stainless Steel shearbeam
Specifications:

● Capacity: 500kg & 1 ton
● Hermetically closed
● Stainless steel IP68 beam load cell
● High accuracy
● OIML approved
● Suitable for platform, hopper and pallet scales.

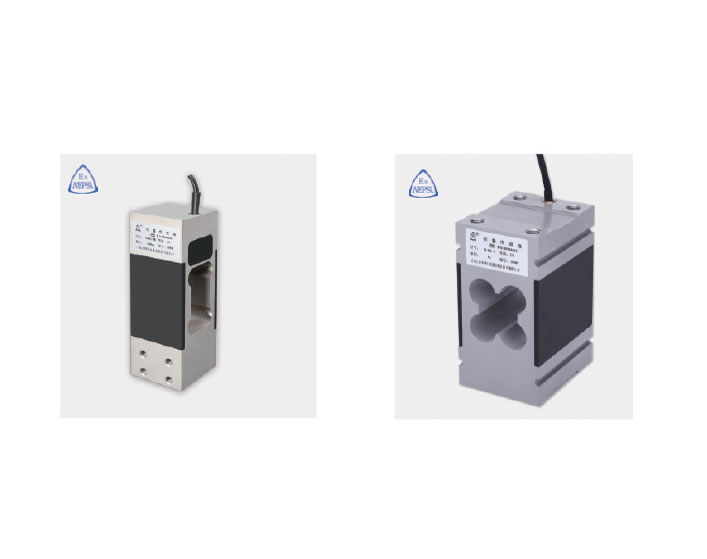

  ST-2611 - GOLDBELL BXG centre mount
Specifications:

● Capacity: 600kg, 1t & 2t centre mount
● Single point, Aluminum alloy load cell
● Protection Grade: IP67.
● Explosion-proof symbol: Ex ib II BT6.....
● Sensitivity: 2.0 mV/V +/- 0.08
● Accuracy: class C3
● Maximum number of load cell interval 3000
● Minimum load cell verification interval E max /10000
● Maximum safe overload: E max 150%
● Ultimate overload: E max 200%
● Supply voltage: 10 ~ 15 V ( DC/ AC)

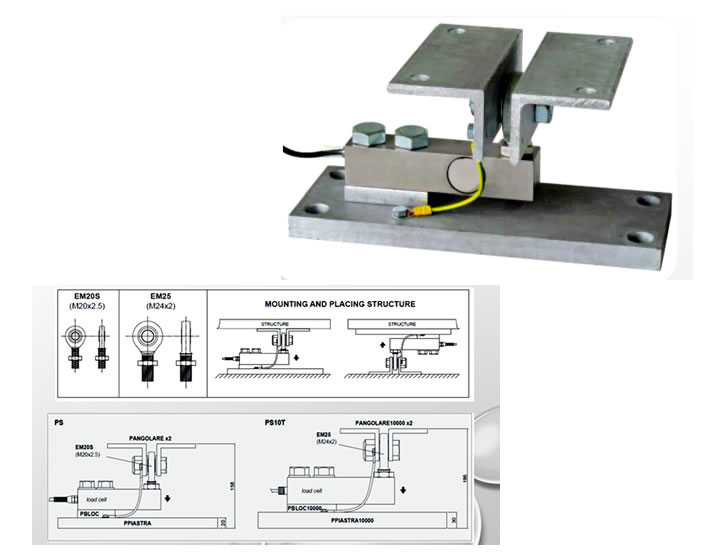

  ST-2612 - ZEMIC HM8C Shear beam
Capacity: 10 ton & 20 ton

Specifications:
● Nickel plated alloy steel IP68 shear beam load cell
● Hermetically sealed
● Suitable for truck, track, hopper and other electronic weighing devices






  ST-2613 - ZEMIC HM2D4 LOADCELL TANK MOUNT
Specifications:

● Alloy Steel, hermetically sealed, oil proof, waterproof and anti-corrosion, suitable for multiform environments

● Spoke type, suitable for electronic truck scale, hopper scale, automotive testing line and other electronic weighing devices and various force measurement occasions.



Features:

● Capacity: 20 ton
● High Accuracy
● Alloy steel construction
● Low profile






  ST-2614 - ZEMIC B6E Stainless Steel Centermount
Features:

● Capacity: 300kg
● Bending beam construction
● Stainless steel IP69K single point load cell
● OIML approved
● Recommended platform size: 800 x 800 mm (100 - 500 k
●Suitable for platform, belt scales and other
● Recommended platform size: 400 x 400 mm (10 - 50 kg)
