Axle Weigher

Submit Scale Quote Request
  ST-2401 - EH-RC weigh pads
Specifications:
• Capacity: each pad: 800kg / System (4 pads): 3200kg
• Platform size: 380x380mm
• Ramp size: 360 x 195mm
• Applications: Racin car: small vehicle, hospital bed weighing
• Loadcell: Each pad: single point aluminium loadcell, system accuracy up to +/- 0.05% of applied load

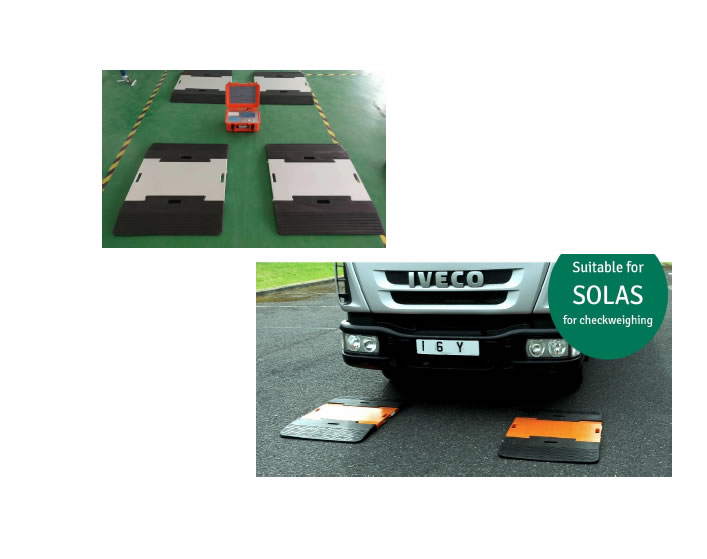

  ST-2402 - PAW-C - M6 axle weigh pads
Specifications:
• Capacity: 20,000kg(per axle) 10,000kg per pad
• Graduations: 10kg
• Base dimensions: 800mm x 450mm x 35mm
• Battery Life: 40 hours of continuous use
• Additional Features: Portable weighing solution for all vehicles, Durable build, Wireless console, Weigh up to 8 x axles at a time, Waterproof pads, Touchscreen housed in tough, lightweight carry case, Build in carry handles, Stationary or motion weighing, 4GB hard drive for data transfer, Built-in printer.
• Capacity: each pad: 800kg / System (4 pads): 3200kg
• latform size: 380x380mm
• Ramp size: 360 x 195mm
• Applications: Racin car: small vehicle, hospital bed weighing
• Loadcell: Each pad: single point aluminium loadcell, system accuracy up to +/- 0.05% of applied load

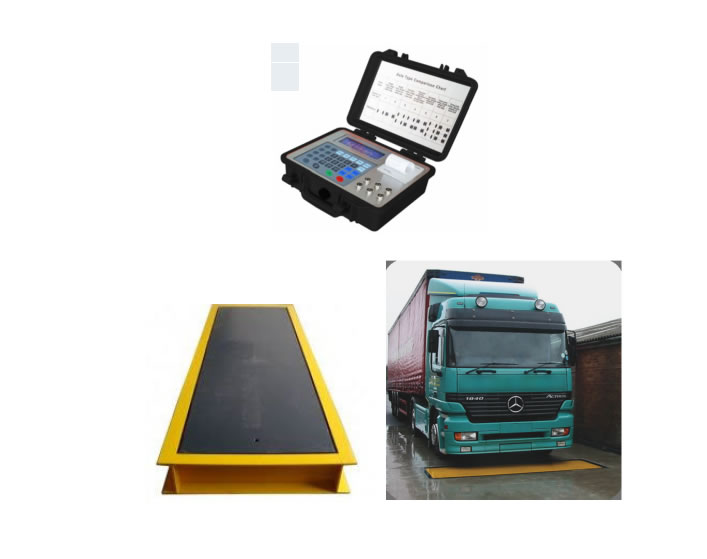

  ST-2403 - PML-M6 Pit mount Axle Weigher
Specifications:
• Axle specifications: Single weighing pad
• Max Capacity: 20,000kg
• Graduations: 10kg
• Base dimensions: 750(D) x 3m(L) x 275mm(H)
• Optional: Pit-frame -800mm x 3040mm - Civil works

Indicator Features:
• Weighing solution for all vehicles
• Durable build with Build in carry handles
• Wireless console/Touchscreen housed in tough, lightweight carry case
• Stationary or in-motion weighing
• 4GB hard drive for data transfer
• Built-in printer
• Battery Life: 40 hours of continuous use
• Accuracy: Static Accuracy: +/-0.03% In-Motion Accuracy: +/-0.5%

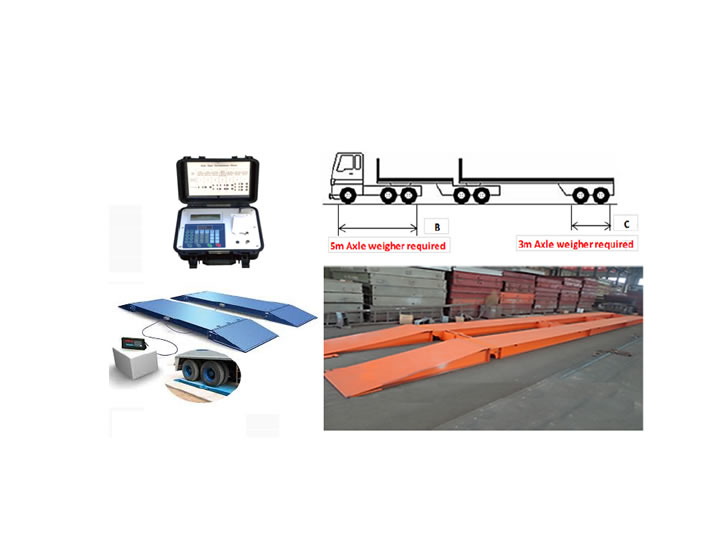

  ST-2404 - PAW C - M6 Double Group Axle Weigher
Specifications:
• Dimensions: two axles of 3m(W) x 75cm(D) x 150mm(H)
• Length of ramps: 750mm
• Max capacity per axle: 15ton (20ton)
• Max capacity combined axles: 30ton (40ton)
• Accuracy: 10kg
• Durable design with 8mm chequer top plate
• With total of 8 x approved ZEMIC H8C-10ton loadcells
• Designed for easy mobility
• Actual weight per axle: 375kg

Weighing modes: Static only within 0,3% - 0,5% accuracy

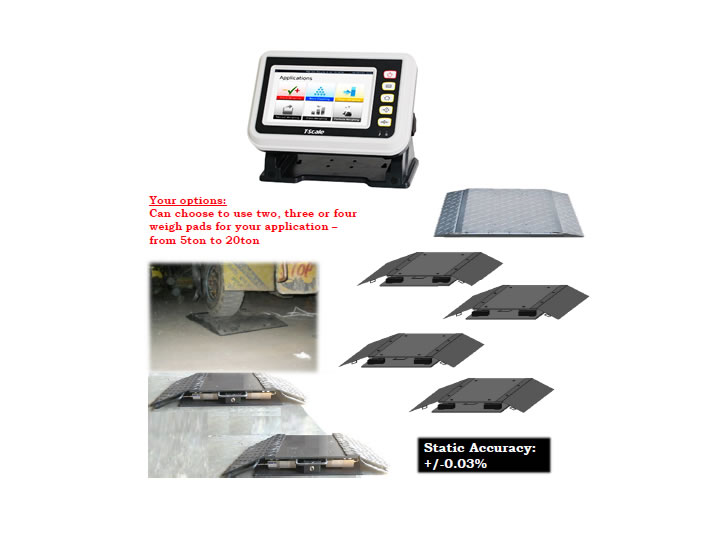

  ST-2405 - Portable Axle Weigher Model Preciso W/P M6
This can be used as a highly accurate check weigher before gaining your verified proof of weight.
The vehicle simply driven over pads, axle after axle at 5 to 10km/h. The indicator adds all the axle loads and calculates the total load. After weighing a laden vehicle, by subtracting the recorded the recorded tare, the indicator calculates the net weight.
The indicator can store more that 2000 truck registration numbers including the relevant tares or empty vehicle weights in the indicators memory. The convenience of this concept is you can measure the payload at any place and time so to avoid overloading. It displays and prints each and every axle load, wheel and prints on the spot should it be required. Weigh pad Specifications:
• Top surface dimension: 400 deep x 500 width x 80mm height
• Ramp Dimensions: 200mm deep x 500mm width chequered 8mm plate
• Total length incl. ramps per weigh pad: +/- 800mm
• Capacity: 5ton per single weigh pad OR 10ton per axle.
• Capacities: from 5ton up to 20ton (Depending on the quantity of weigh pads)
• Load cell type: ZEMIC H8C (IP67 alloy steel)
• Load cell with 120% overload protection.
• Construction: Mild steel, light weight (designed with carry handles for ease of portability)
• Working environment: On standard concrete road, flat construction site, highway check, etc.
• Wide weighing pads - accommodating double wheel per pad.
• Industrial loadcell cables.
• Build-in anti-electromagnetic interference to make sure weighing result would not be influenced.
• Actual weight: 30kg per pad including ramps.

Specifications for TOUCH SCREEN wireless indicator:
• For both Static Weighing & In-Motion Weighing.
• High-definition Touch Screen.
• With high speed thermal Printer.
• Standby working 40 hours battery with auto switch off function.
• Unlimited Records stored.
• Can store more than 2000 truck registration numbers including the relevant tares or empty vehicle weights in the indicator's memory.
