Platform Industrial Scales & Local Manufactured Industrial Platforms |
 |
 |
|

|

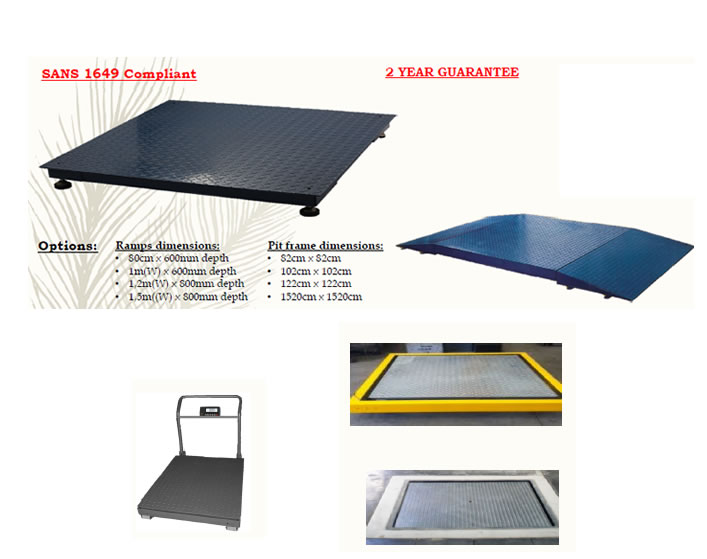

ST-0301 - QAL & ELW-1,5t, 3t & 5t platforms Specifications: • Low profile heavy duty floor scales design • Capacities up to 5ton • Easy access SST junction box cornering from top • Mild steel powder coated platform • Standard 5m loadcell cable • Swivel leveling feet - for stability & durability • Platform height - 11cm • Welded Steel frame with 4 - 6mm checkered top plate • 4 x H8C ZEMIC OIML approved load cells • OPTIONS: Pit frames, Ramps, stainless steel loadcells 2 YEAR GUARANTEE |
|
|
ST-0302 - KWM-Y-1,5t, 3t & 5t platforms OIML & SABS APPROVED PLATFORMS Specifications: • Low profile heavy duty floor scales design • Capacities up to 5ton • Easy access SST junction box cornering from top • Mild steel powder coated platform • Standard 5m loadcell cable - wire mesh optional • Swivel leveling feet - for stability & durability • Platform height - 11cm • OPTIONS: Pit frames, Ramps, stainless steel loadcells 2 YEAR GUARANTEE |
|
|

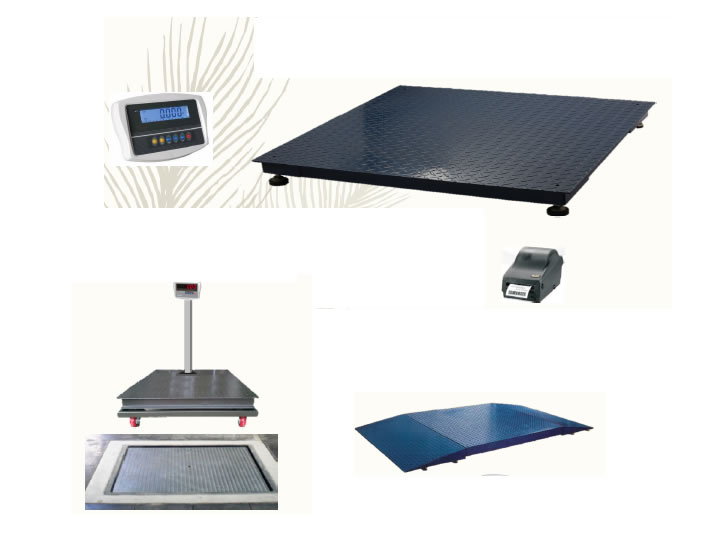

ST-0303 - SHEKEL Y-1,5t, 3t & 5t platforms OIML & SABS APPROVED PLATFORMS Specifications: • Low profile heavy duty floor scales design • Capacities up to 5ton • Easy access SST junction box cornering from top • Mild steel powder coated platform • Standard 5m loadcell cable - wire mesh optional • Swivel leveling feet - for stability & durability • Platform height - 11cm • OPTIONS: Pit frames, Ramps, stainless steel loadcells 2 YEAR GUARANTEE |
|
|

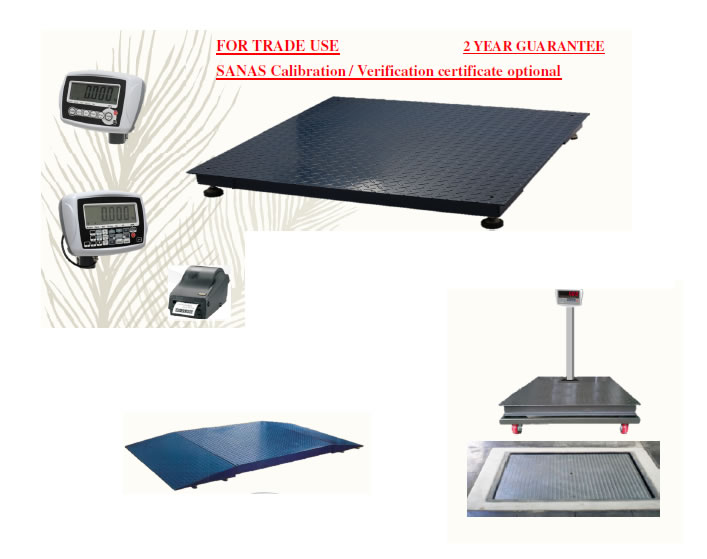

ST-0304 - LP series platform scales SABS APPROVED, durable & long lasting low profile design Specifications: • Mild steel channel iron 76 x 38 x 4mm detachable top plate • Height: Adjustable 105mm - 125mm adjustable • Loadcells: Pacific PA6140 or Zemic H8C • 5m Durable Loadcell cable • Top adjustable stainless steel summation box • 4 x Standard or Swivel leveling feet OPTIONAL: • Stainless Steel Loadcells. • Checkered top plate. • Hot dip Galvanizing with top plate electro-plated. • Ramps (width x 800mm gradient). • Stainless steel top plate. • Pit-frames for pit-mount platforms • Ramps Specifications: • Mild steel channel iron 76 x 38 x 4mm detachable top plate • Height: Adjustable 105mm - 125mm adjustable • Loadcells: Pacific PA6140 or Zemic H8C • 5m Durable Loadcell cable • Top adjustable stainless steel summation box • 4 x Standard or Swivel leveling feet Durable & long lasting low profile design |
|
|

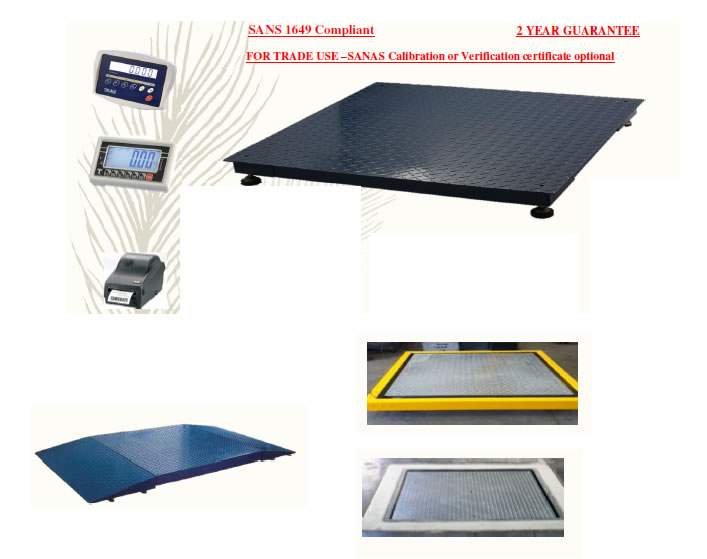

ST-0305 - LHD-3t & 6t Heavy Duty platforms LHD-3ton specifications: • 4 x ZEMIC H8C-2ton loadcells • 6mm Top chequer plate • Standard 5m Loadcell cable • Adjustable leveling feet • Loadcell adjustable summation board • Mild steel channel iron: 100mm x 50mm • Undercoat & Painted • Height: 125mm - 150mm adjustable • Extra strength supports for 2m, 2,5m & 3m LHD-6ton specifications: • 4 x ZEMIC H8C-3ton loadcells • 6mm Top chequer plate • Standard 5m Loadcell cable • Adjustable leveling feet • Loadcell adjustable summation board • Mild steel channel iron: 120mm x 50mm • Undercoat & Painted • Height: 150mm - 175mm adjustable • Extra strength supports for 2m, 2,5m & 3m |
|
|

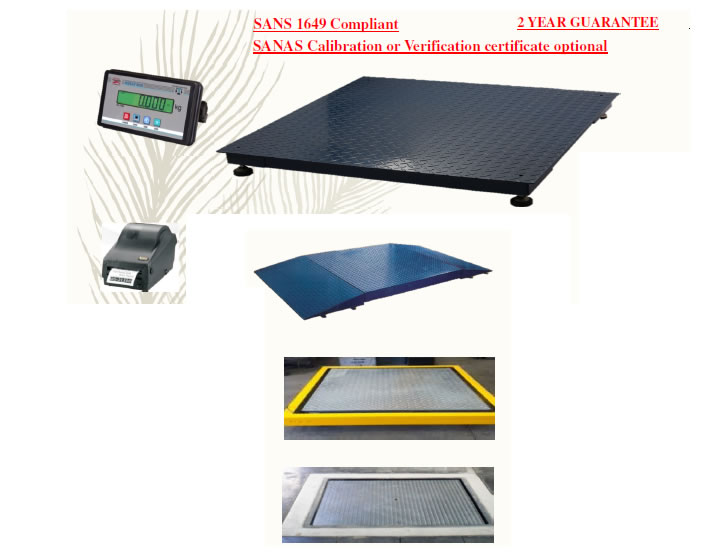

ST-0306 - LHD-10t & 20t Heavy Duty platforms Trolley UL up to 3t platform scales Specifications: • LHD-10 Loadcells: 4 x ZEMIC H8C-5ton • LHD-20 Loadcells: 4 x ZEMIC H8C-10ton • Top plate: 8mm chequer • Standard 5m Loadcell cable • Adjustable leveling feet • Adjustable summation board • Height: 180mm - 220mm adjustable • Height: 200mm - 240mm adjustable Platform construction specifications: • Mild steel channel iron: 152mm x 76mm • Top plate: 8mm chequer • Undercoat & Painted |
|
|

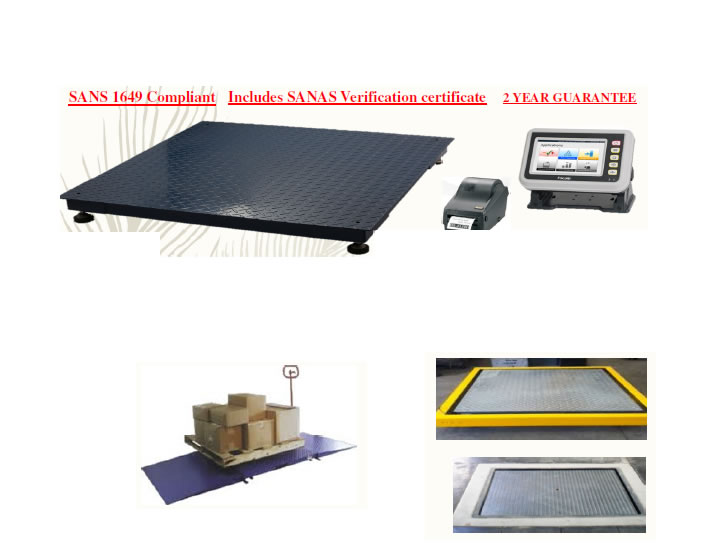

ST-0307 - Trolley UL up to 3t platform scales Trolley ramp UL-0808: (80cm x 80cm) platform with fixed ramps • Outer dimensions: 80cm(W) x 80cm(L) including ramps • Inner dimensions: 60cm(W) ramp side width x 80cm(L) • Weighing surface: 60cm x 60cm • 2 x Ramps: 10cm gradient • Top plate: level at top of channel iron or recessed • Top plate - 5mm chequer plate • 5 to 10mm adjustable floor to ramp gap Trolley ramp UL-1012: (1m x 1,2m) platform with fixed ramps • Outer dimensions: 1m(W) x 1,2m(L) including ramps • Inner dimensions: 80cm(W) ramp side width x 1,2m(L) • Weighing surface: 80cm x 1m • 2 x Ramps: 20cm gradient • Top plate: level at top of channel iron or recessed • Top plate - 5mm chequer plate • 5 to 10mm adjustable floor to ramp gap Trolley ramp UL-1416: (1,4m x 1,6m) platform with fixed ramps • Outer dimensions: 1,4m(W) x 1,6m(L) including ramps • Inner dimensions: 1,2m(W) ramp side x 1,2m(L) • Weighing surface: 1,2m x 1,2m • 2 x Ramps: 20cm gradient • Top plate: level at top of channel iron or recessed • Top plate - 5mm chequer plate • 5 to 10mm adjustable floor to ramp gap |
|
|

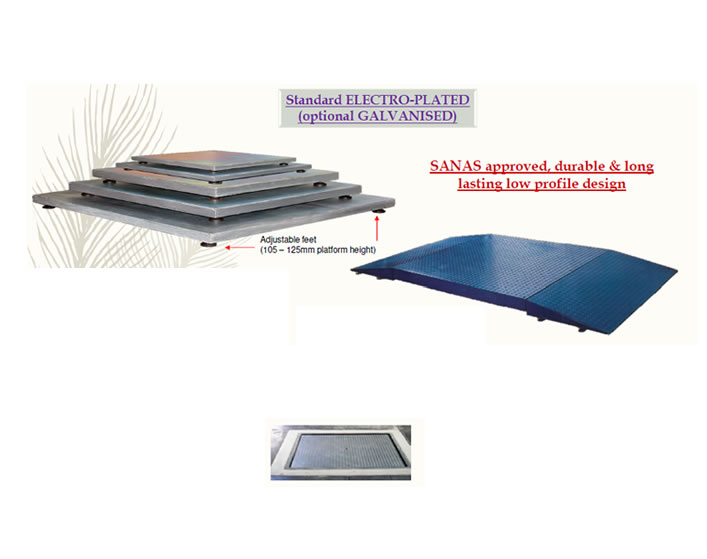

ST-0308 - YUBO Y-series platforms - up to 5t (SABS approved) OIML/SABS APPROVED PLATFORMS - 2 YEAR GUARANTEE Mild steel powder coated - heavy duty design for general purpose weighing Specifications: • Low profile heavy duty floor scales design • Capacities up to 5ton • Easy access SST junction box cornering from top • Mild steel powder coated platform • Standard 5m loadcell cable • Swivel leveling feet - for stability & durability • Platform height - 11cm • Welded Steel frame with 4-6mm checkered plate • 4 x H8C ZEMIC OIML approved load cells |
|
|
ST-0309 - Platform scale accessory - All-in-1 Stationed platform with pole mounted indicator: • For maximum 1,5ton platform capacities & dimensions: • For: 80cm x 80cm platform • For: 1m x 1m platform • For: 1,2m x 1,2m platform • For: 1,5m x 1,5m platform Mobile trolley and pole mounted indicator for large platform: (1m x 1,2m) platform with fixed ramps • Platform frame support with 4 x 500kg maximum capacity castor wheels • Includes indicator POLE mount & swivel • 2 x FIXED castor wheels • 2 x SWIVEL/LOCK castor wheels |
|
|

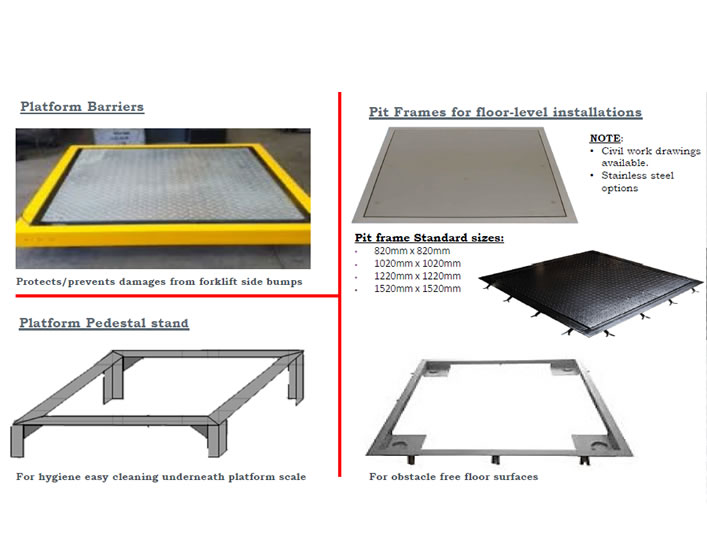

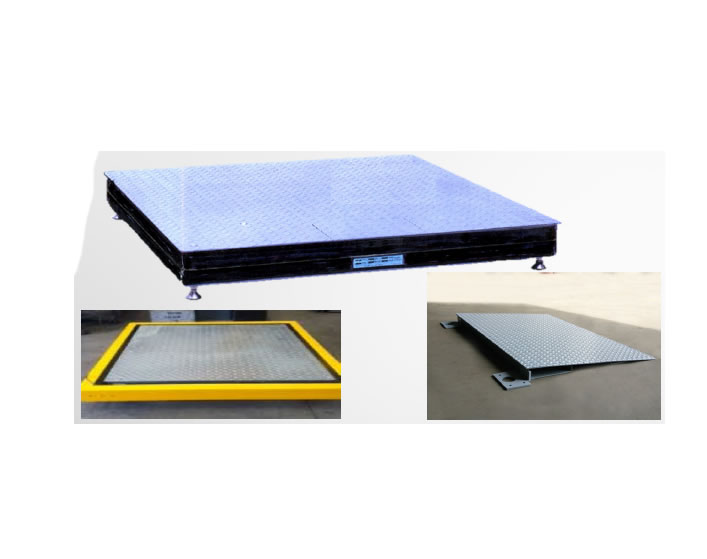

ST-0310 - Platform scale accessories -Ramps, pitframe, barriers Industrial platform Ramps - Mild steel chequer plate & Stainless steel Platform Barriers: Protects/prevents damages from forklift side bumps Ramps: Purpose of driving on with forklift or pushing on pallet jack |
|
|

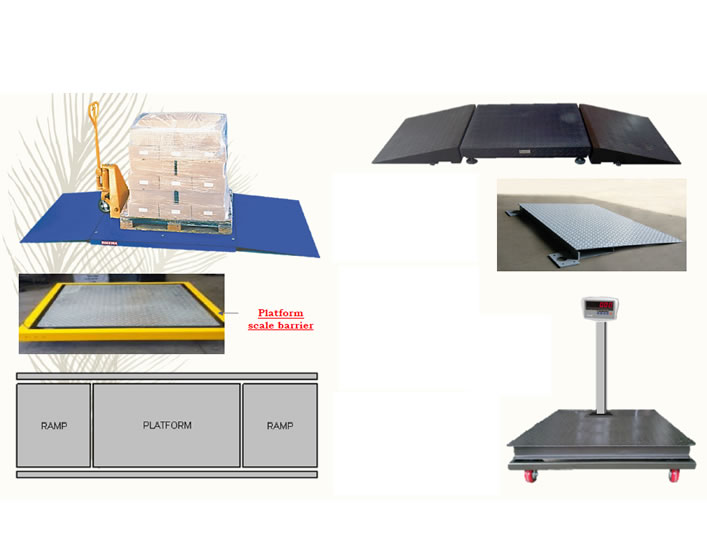

ST-0311 - Trolley FTR series - 3ton Trolley platform scales A ROBUST and ideal solution, suitable to pull on trolleys or boxes, to push pallet jack on, rolling on drums, etc. Platform with easy-access integral ramps Specifications: • OUTSIDE DIMENSIONS:1m(W) x 1m(L) / 1,2m(W) x 1,2m(L) / 1,2m(W) x 1,5m(L) / 1,5m(W) x 1,5m(L) • TOP PLATE: 40mm recessed 5mm chequered top plate. • CAPACITY: 0kg – 3ton • RAMP SPECS & CONCEPT: With fixed ramps, Floor to ramp gap - 5 to 10mm adjustable. • CONSTRUCTION: Mild steel, grey powder coated. • CABLE LENGTH: Standard 5m loadcell cable. • INDICATOR: Indicator options available for specific requirements. |
|
