Indicators - Stainless steel & Industrial applications

Submit Scale Quote Request
  ST-1701 - TSCALE RWS indicator

Specifications:
■ St/steel IP65 housing
■ RS232 output for printer or PC
■ Built-in recharg.battery - up to 40hrs

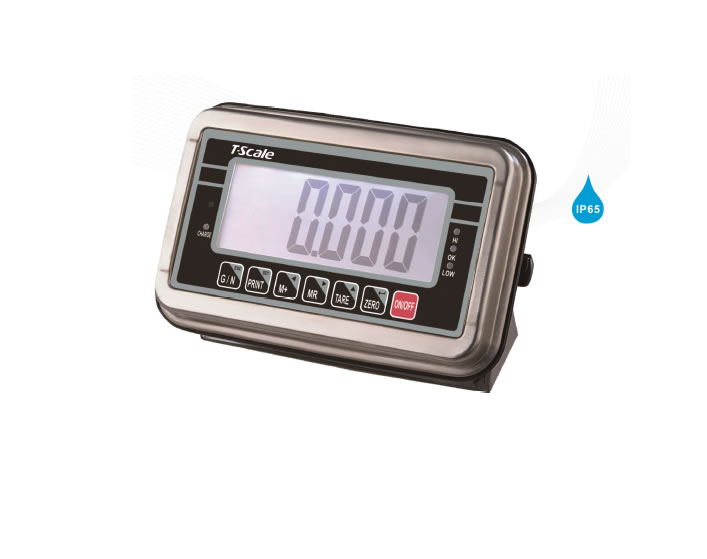

  ST-1702 - TSCALE BWS-M indicator
FOR TRADE USE - SANS 1649 Compliant

Specifications:
■ St/steel IP65 housing
■ Large 52mm LCD display with backlight
■ Built-in recharg.battery
■ RS232 output
■ Application programs include: accumulation, animal scale check weighing

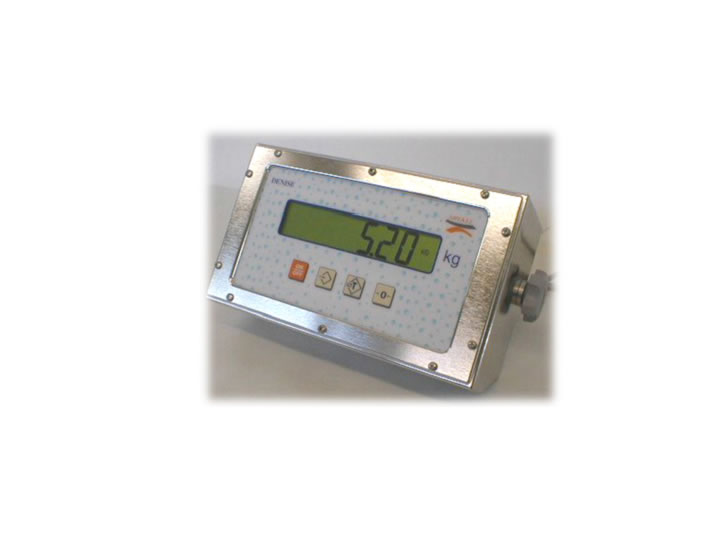

  ST-1703 - SHEKEL MERAV 2000 DENISE - st/steel housing
FOR TRADE USE - SANS 1649 Compliant

Specifications:
■ Weight memory
■ Animal Weighing
■ Peak hold
■ RS232 output

Printing capabilities:
■ Date & Time
■ Consecutive number
■ Tare weight
■ Gross weight
■ Net weights
■ Total weight
■ SUPPLIER NAME description on label & receipt

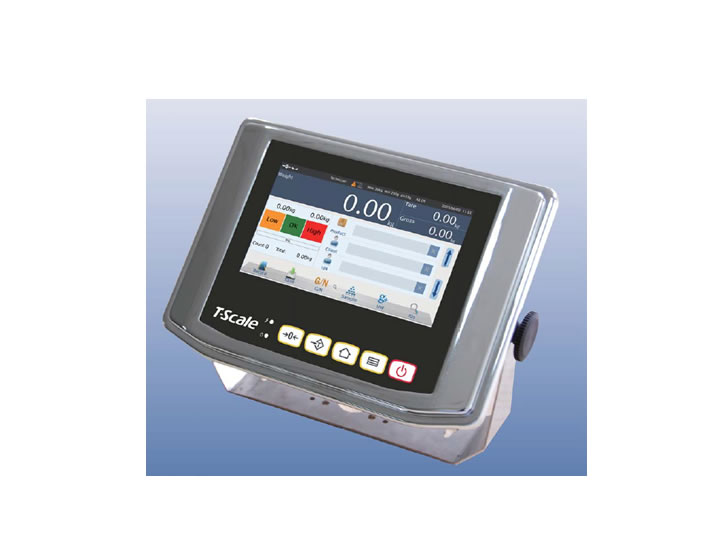

  ST-1704 - TSCALE NS7-M indicator
STAINLESS STEEL INTELLEGENT & TOUCHSCREEN
FOR TRADE USE - SANS 1649 Compliant


Specifications:
■ Ports 2 x USB, 1 x RS-232, 1 x RJ45, 1 x RS-485/422/232
■ Display 8-inch 800X480 colour LCD display
■ Battery Rechargeable battery for 15 hours continues
■ Versatility in receipts and labels
■ By RS-232, It can connect to a ticket or label printer.
Many ticket and label formats can be selected from display.






  ST-1705 - TSCALE BW-M S/P - Set-point controller
FOR TRADE USE - SANS 1649 Compliant

Set-point specification:
■ TWO SET-POINT CONTROL
■ Includes control keys (start/pause & stop button)
■ Includes control card
■ Includes control relay or optional
contactor applicable in case of 3ph power

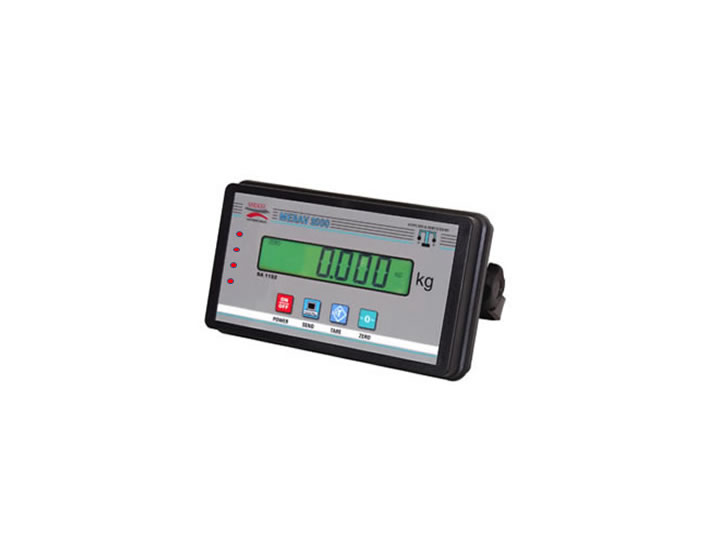

  ST-1706 - SHEKEL MERAV 2000 S/P controller
FOR TRADE USE - SANS 1649 Compliant

Specifications:
Same as ST-1610

■ 4 x Set-point programmable output






  ST-1707 - SHEKEL MERAV 2000 O/P
Indicator for PLC application - 4-20mA output
FOR TRADE USE - SANS 1649 Compliant

Specifications:
Same as ST-1610

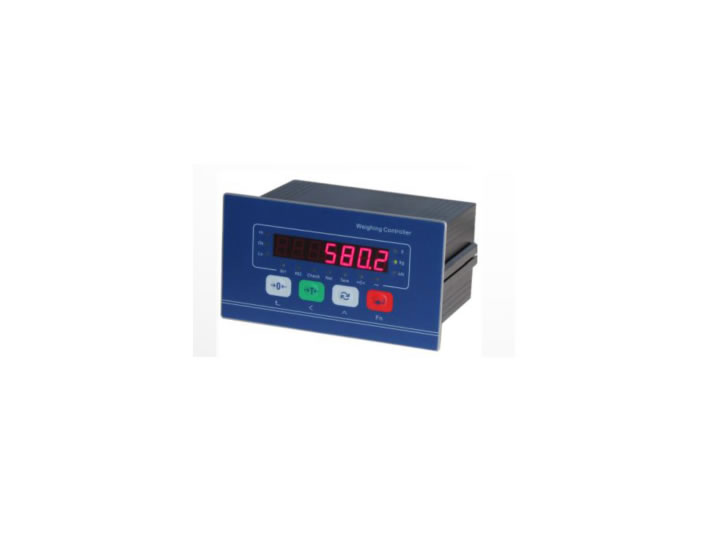

  ST-1708 - BC360L2 (4-20mA) Batch Controller

Specifications:
■ Compact Panel Mount structure, save installation space
■ Two-speed feeding
■ Supports up to three(3)ingredients batching and Dump
■ Supports automatic, semi-automatic operation
■ Auxiliary 6 flexible setpoints fulfill customized application
■ 4xDI / 6x Relay DO
■ Auto zero tracking available
■ Power-up zero available
■ Isolated RS232/RS485
■ Standard MODBUS RTU protocol
■ Optional 220VAC and 24VDC power supply

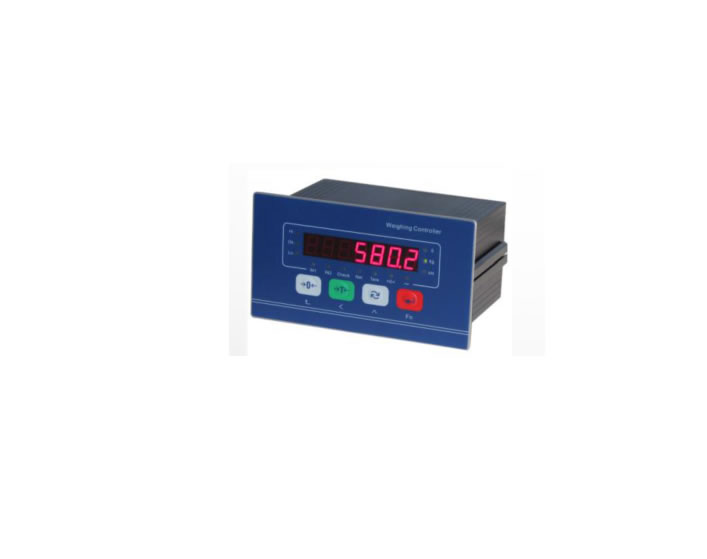

  ST-1709 - BC360A (set-point) Batch Controller

Specifications:
Compact Panel Mount structure, save installation space
■ Two-speed feeding
■ Supports up to four ingredients batching and discharge
■ Supports automatic, semi-automatic and manual mode
■ Support batch and cumulative function
■ Store 10 groups of formula with non-volatile.
■ 4xDI / 12x DO, support redefinition
■ Auto zero tracking available
■ Power-up zero available
■ Isolated RS232/RS485
■ Standard MODBUS RTU protocol









Sole Agents for:
CAS RETAIL; SHEKEL INDUSTRIAL SCALES; CZNEWTON PLATFORM SERIES; PRECISO BALANCES; GOLDBELL & ZEMIC LOADCELLS; MECHATRONIC INDICATOR; TSCALE RETAIL & INDUSTRIAL SERIES; YUBO INDUSTRIAL PLATFORM SCALES; GM AUTOMATION; EVERIGHT CRANE SCALES; TIANCHEN ECONO HANGING SCALES; NINGLI PALLET SCALES; TEST WEIGHTS; HONGLI WEIGH PADS


SELLING & HIRING OF SCALES & WEIGHTS





Local Manufacturing and Engineering:
• Manufacturing to meet customer requirements.

Services, commitments & undertakings:
• A service team performing a 24hr service response time - T&C.
• Annual service agreement available.
Country wide Sales and Service Distributors:
• All our distributors are totally familiar with our products
and after sales service and calibration.
• All our distributors are SANAS accredited.
All pricing and promotions available while stocks last.





Accreditation:
STS holds SANAS Accreditation for the Calibration & Verification of
weights & weighing instruments since 1996,
to ensure we keep abreast with development in the industry
& within the Legal Metrology ACT.

SANAS accreditation includes:
Calibration & Verification of weighing equipment
Calibration of weighing equipment
Calibration of mass pieces/weights

  SANAS Accredited Laboratory
